OTT Sequence Flow

Contents

Overview

This section contains an example of an over-the-top (OTT) sequence flow that describes the end-to-end integration between MarketONE, the OTT provider, and the communications service provider (CSP).

Customer Purchase of an OTT Service from an OTT Mobile Application

In this OTT managed subscription sequence flow example, the customer purchases an OTT service from an OTT mobile application on their phone, and then puts the charge on their existing bill (direct carrier billing (DCB)).

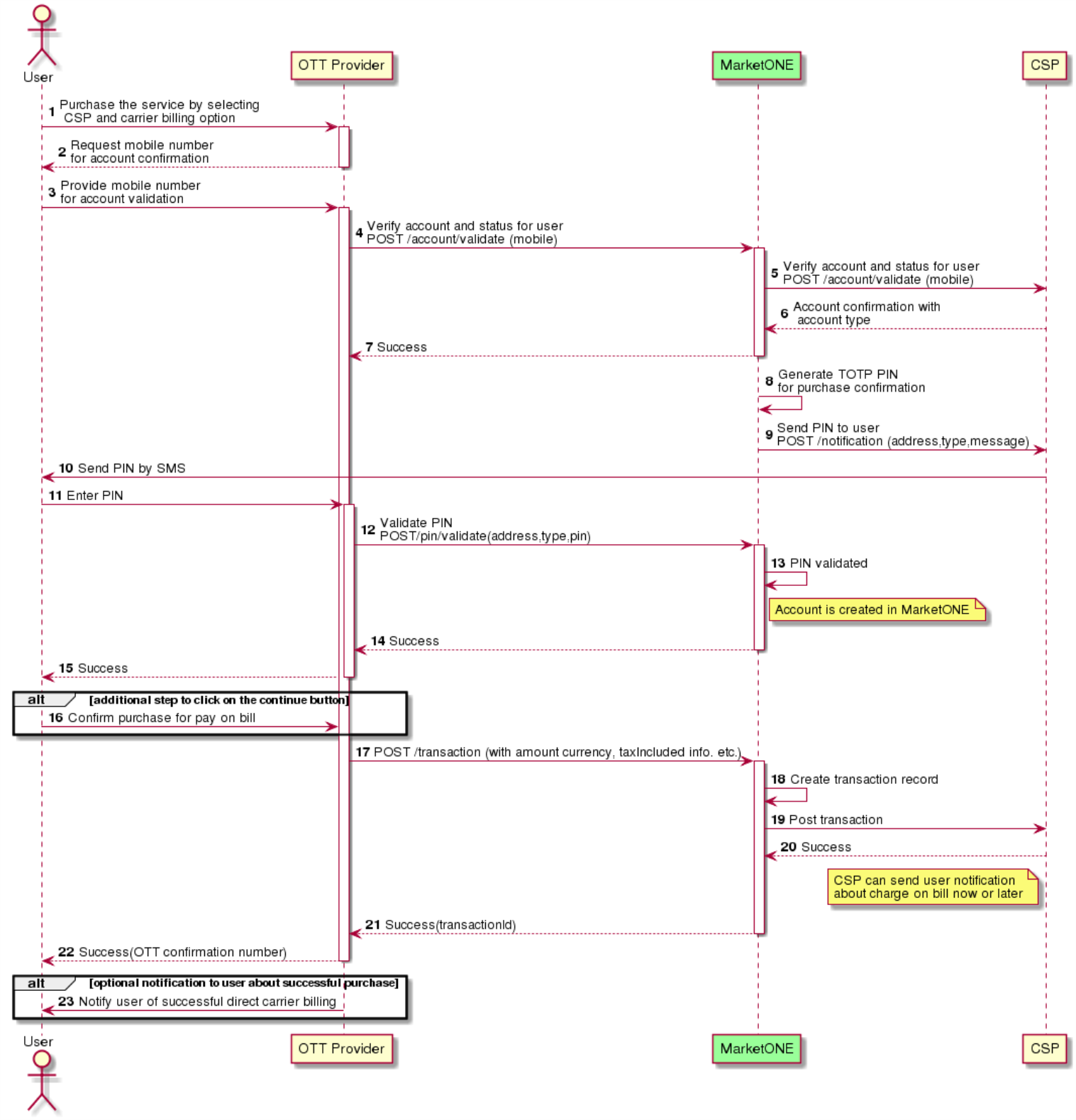

Example Flow 1: Customer Enters their Mobile Number

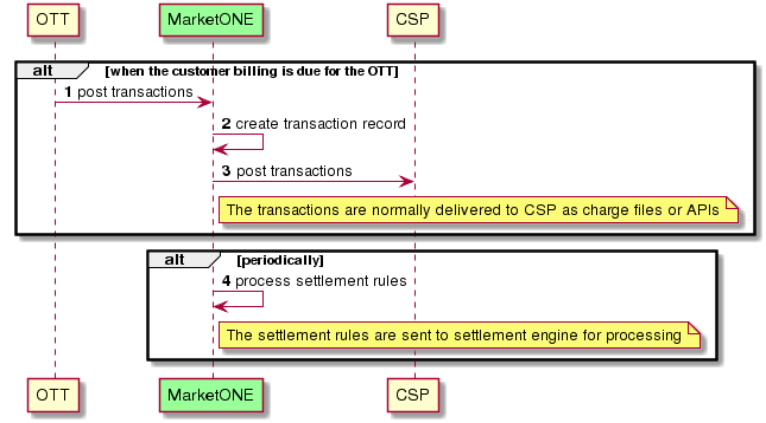

Note: The following sequence flow illustrates the payment and settlement between the OTT provider and the CSP.

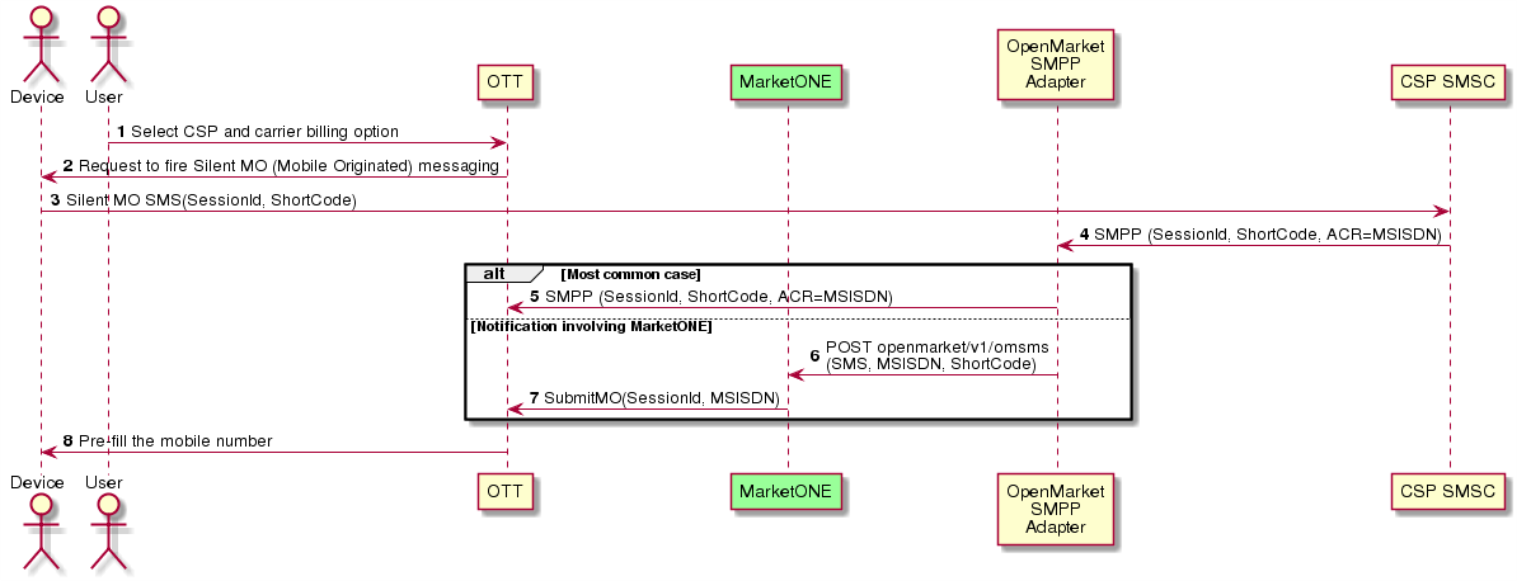

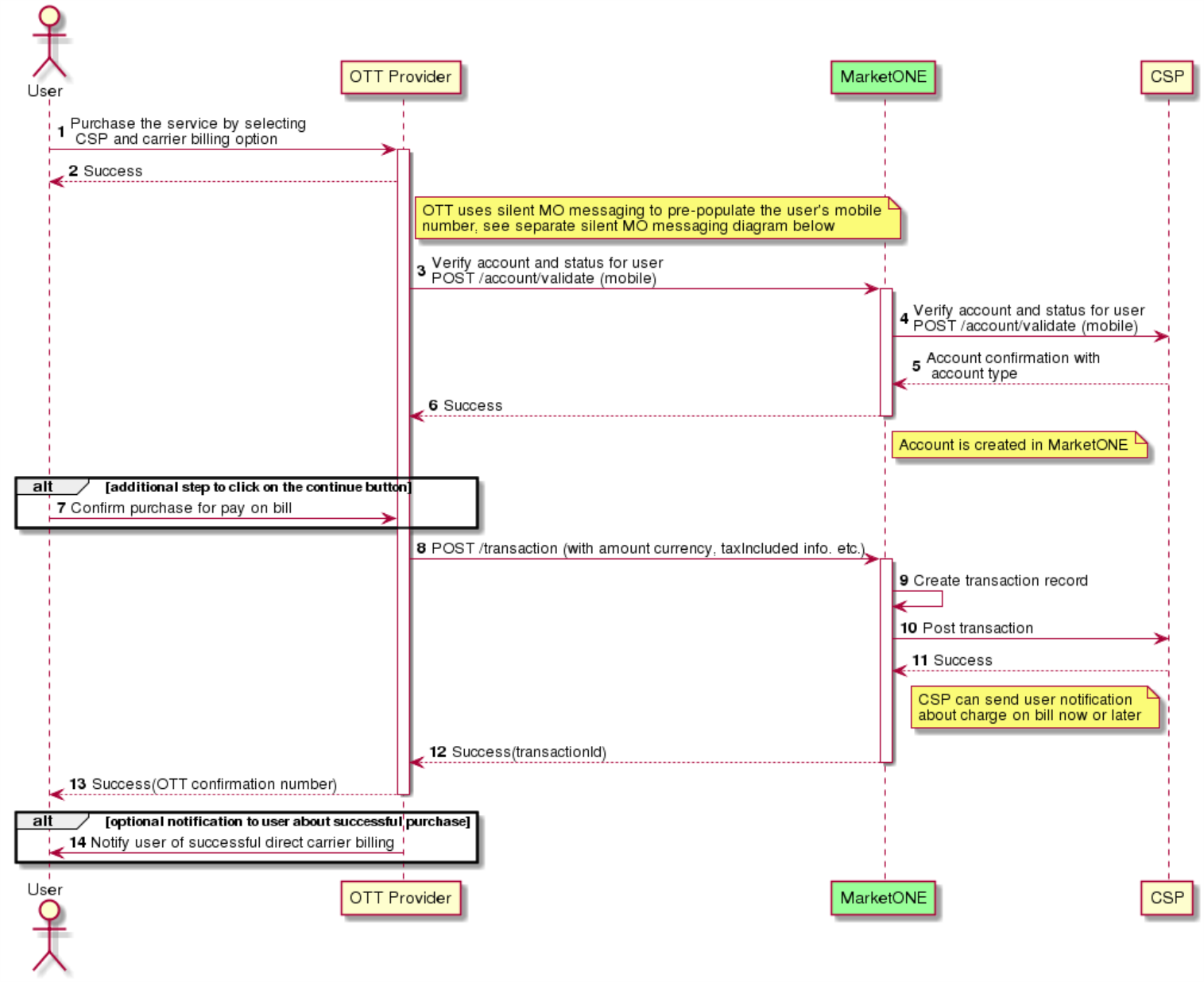

Example Flow 2: OTT Provider Uses Silent Mobile Originated (MO) Messaging to Pre-Populate the Mobile Number

Note: The following sequence flow illustrates the silent MO messaging used to automatically retrieve the customer's mobile number.

Revision History

Version Description
2019.08 Initial release.
2019.10 Updated the Purchase of a Partner Service from the Partner Portal sequence diagram.
  Updated the Purchase of a Partner Service from the Service Provider Self-Service Portal sequence diagram.
2019.11 Updated the Purchase of a Partner Service from the Partner Portal sequence diagram.
2019.12 Added Contents and Revision History sections.
2020.02 Added two new sequence flow examples.
