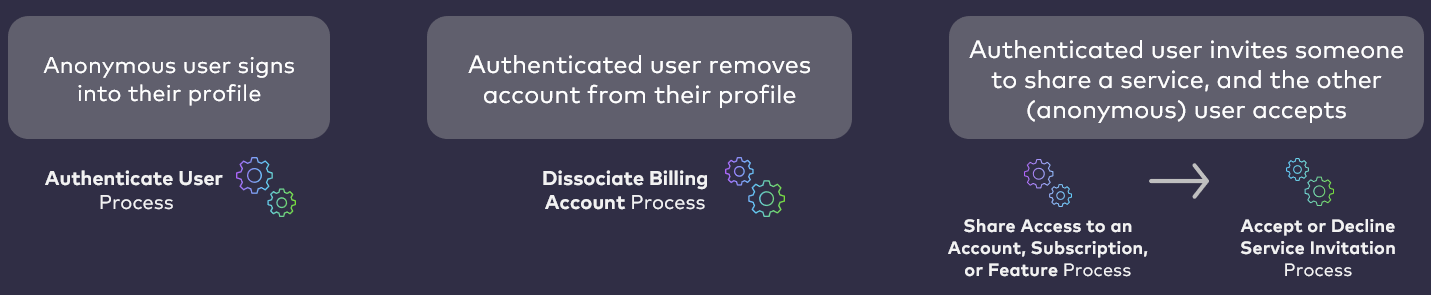

Multiple Process Orchestration

Also known as the “Accept or Decline Process” for short, this Process allows an end user, who has been invited by another user to share an account or service, to explicitly accept or decline the invitation. Most user journeys are facilitated by a single Process. Conversely, there are some cases where Storefront Gateway orchestrates and links two or more Processes to complete a given journey. The Accept or Decline Process completes a two-Process, two-user journey initiated by a preceding Accept or Decline Service Invitation Process Process.

​
New User Creation

In the event that the invitee does not yet have their own Storefront Gateway User ID, then this Process automatically handles and completes the new user onboarding for the invitee. Once the invitee accepts, the Process will prompt your client for a password, and your client will need to pass that prompt to the front end.

​
Process Invocation

Unlike most Processes, The Accept or Decline Process is not invoked with the Process Start API. Instead, your client leverages the Session Token API to redeem a Storefront Gateway Action Token that was generated by a previous Process (the Share Access to an Account, Subscription, or Feature Process. There are two methods to call the Session Token API in order to start a Process. Each method is appropriate to the type of notification that the user receives, either a clickable verification link, or a short One-time Passcode (OTP) that the user needs to give to the UI: Method one: redirect URL with token value
  1. The user completes a Process.
  2. Storefront Gateway issues an action token, and sends a verification link in an email or SMS. The link is composed of a redirect URL back to your client application, and the full, actual token string is appended to the end of that URL.
  3. Once the user clicks/taps the link, they are redirected back to the client.
  4. The client automatically takes the token value directly from the URL, and uses it to call GET /session/token?token={**token**} API. If the token is valid, then this triggers the Activate User Process.
Note: If your organization is sending clickable link notifications, then you’ll need to do a few things to facilitate the flow:
  • You’ll need to create the actual landing page that will invoke this API method when opened.
  • You’ll need to set the redirect URL to that landing page in the Storefront Gateway Admin console, on the Security settings page. This allows Storefront Gateway automatically send the appropriate link to the user once they’ve completed the first half of their journey. See the Security Settings section in the Admin Guide for more details.
Method 2: One-time Passcode (OTP) token
  1. The user completes a Process.
  2. Storefront Gateway sends a short, custom One-time Passcode (OTP) in an email or SMS. Storefront Gateway also returns a PKAT to the client.
  3. The client prompts the user to enter the OTP that was sent to them.
  4. The user retrieves the code, and enters it into the client.
  5. Once the user enters their code, the client then takes the OTP and the PKAT to call GET /session/token?customToken={**otp**}&pkat{**pkat**} API. If both the OTP and PKAT are valid, then this triggers the Activate User Process.
When your organization onboards with Storefront Gateway, you’ll determine the type of notification messages you want Storefront Gateway to generate and send to end users, and what action token type they receive in those messages (i.e., a clickable link, a short code, or both). Once you have your settings in place, you’ll then need to build your application to use the appropriate method for redeeming action tokens. Note: The invitee can only invoke this particular Process using a clickable redirect URL that they receive in either an email or SMS. Your client won’t have any knowledge of the PKAT that is needed to redeem an OTP when the invitee visits your application. So the first method above is the only applicable one for service invitees. Both methods are included here for context.

​
Process Flow

This flow describes the Process at a high level. Preconditions Basic Flow
  1. The user clicks on the invitation link in their email or SMS.
  2. The invitee’s browser redirects to the client application.
  3. The client invokes the Process, using the token taken from the redirect URL.
  4. Storefront Gateway responds with a prompt for the user to accept or decline.
  5. The user clicks Accept, and the client passes this back to Storefront Gateway.
    1. If the invitee is a new Storefront Gateway User, then the Process returns an additional prompt to the client for the user to complete their onboarding
    2. The client displays the user’s verified contact channel (the email or mobile to which the invitation was sent) and prompts the user to provide a password.
    3. The invitee submits a valid password, and the client passes that back to Storefront Gateway.
  6. Storefront Gateway fully activates the invitee’s User ID and the email/mobile registered to it.
    • On the back end, Storefront Gateway updates the User entity status, and authN ID status, to activated.
  7. Storefront Gateway fully activates the invitee’s access to the shared account or service.
    • On the back end, Storefront Gateway updates the User-to-Account (or Subscription, or Feature) association status to activated.
    • Storefront Gateway updates the User-to-Group association status to activated.
Post-conditions
  • The invitee is now a fully activated Storefront Gateway User, and they have access to the shared account or service represented by the Storefront Gateway Account, Subscription, or Feature.
  • Storefront Gateway automatically authenticates the user.
  • Storefront Gateway sends a confirmation message to the account/service Primary User.
Possible or Common Errors
  • The provided password does not match validation rules.

​
Settings

Certain aspects of the Process’ behavior are controlled by configurable system settings. Your organization can manage these and other settings in the Admin console.

​

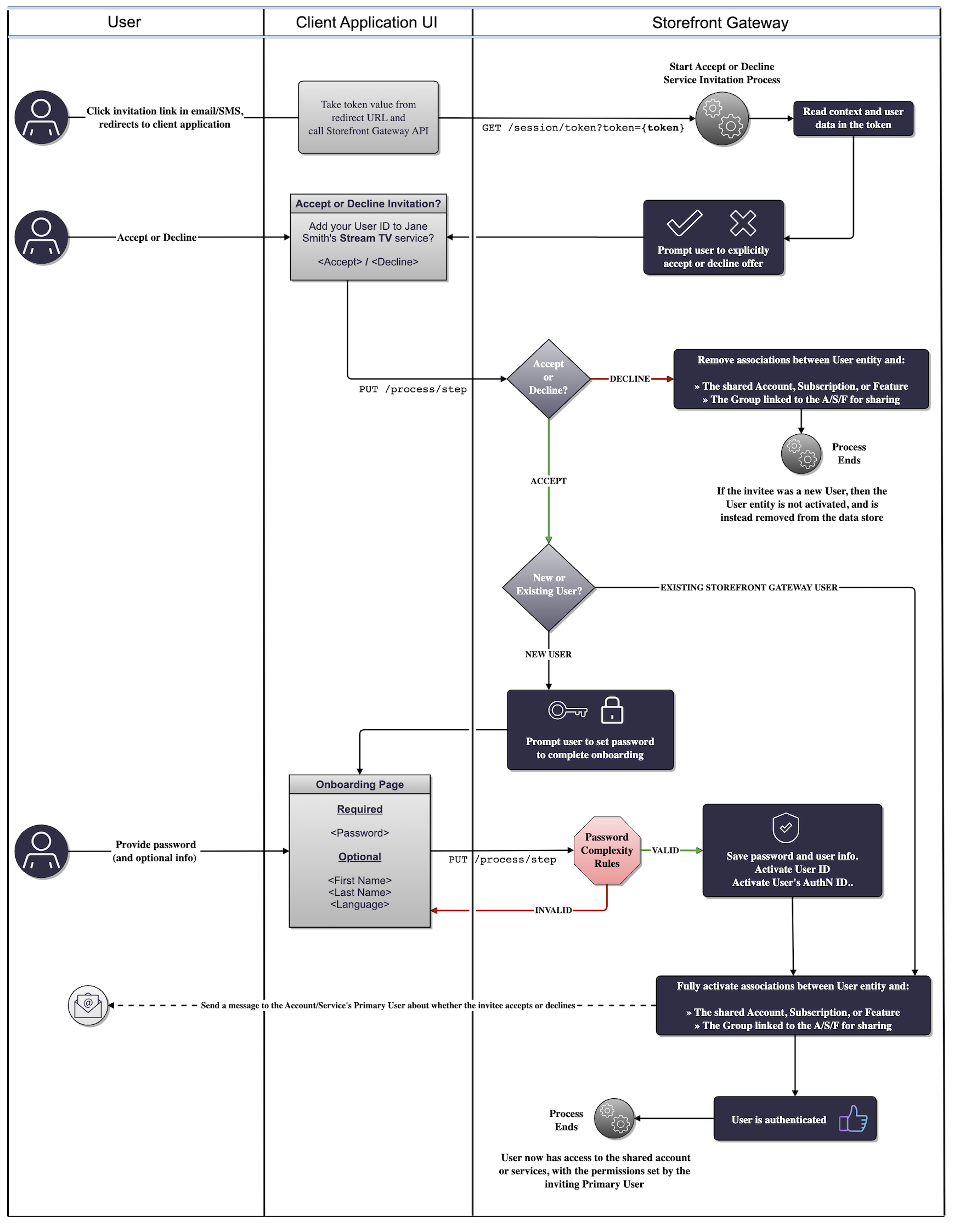

User Journey Diagram

This diagram illustrates the standard user journey using the Accept or Decline Process.

​
Use Cases

The following use cases provide guided API walkthroughs of this Process for client developers: Parent topic:Account Association & Management Processes
