Onboard user with email address

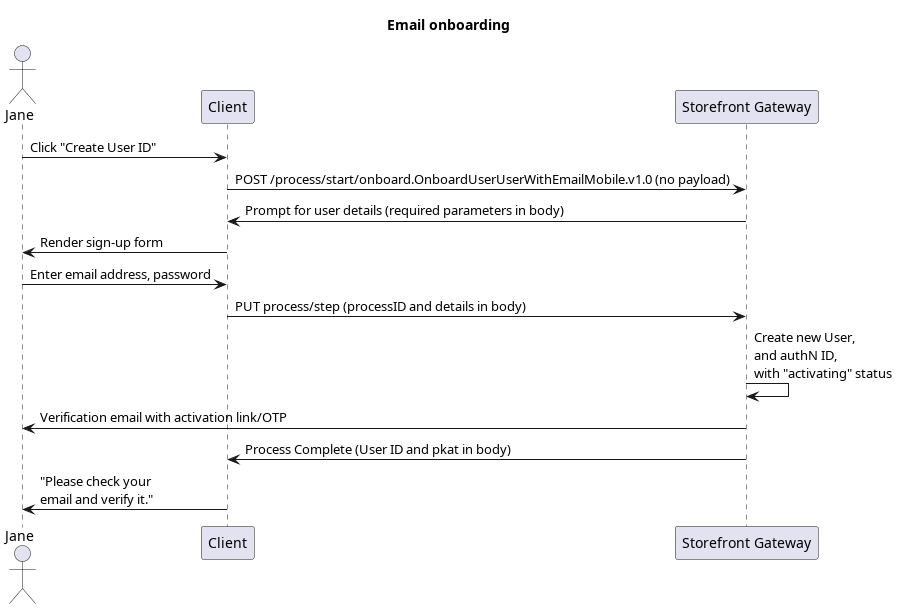

This is the email-driven onboarding use case delivered by the Onboard User with Email and Mobile Process. This is the most standard onboarding use case. The Process consumes the end user’s email address and password, creates a new unique Storefront Gateway User entity, and then registers the email as an attribute and authentication identifier (authN ID) on that User entity. Both the Storefront Gateway User and the authN ID are created with an activating status, pending verification of the email.

Initial Request

Your client calls the POST /process/start/{processName} API to initialize the Process:

**POST https://\{your.url\}/process/start/onboard.OnboardUserWithEmailMobile.v1.0**
<no body>

Response

Storefront Gateway responds with a request for user information:

**RESPONSE - body**
{
   "processId": "8bca30ca-dd44-4050-aece-53b0dbed1922",
   "processName:" "onboard.OnboardUserWithEmailMobile.v1.0"
   "stepName": "UserDetailsPrompt",
   "lastStep": false
   "displayMessage": "Please Enter User details for self onboarding",
   "parameters": {
      "email": "String",
      "phone": "String",
      "credential": "String",
      "firstName": "String",
      "lastName": "String",
      "displayName": "String",
      "lang": "String"
   }
}

`processId`	Unique identifier for the current instance of this Process.
`processName`	Full name of the Process, including the category and version number.
`stepName`	Name of the specific step that the Process is currently on.
`lastStep`	Boolean that indicates whether or not this was the last step in the Process.
`displayMessage`	Optional message that the UI can display to the end user.
`parameters`	Object that specifies the info this Process requires to continue its task.
`email`	(Conditional) The user’s email address. Required if `phone` is not provided.
`phone`	(Conditional) The user’s mobile phone number. Required if `email` is not provided.
`credential`	(Required) The user’s desired password.
`firstName`	(Optional) The user’s first name.
`lastName`	(Optional) The user’s last name.
`displayName`	(Optional) A display name for the user. This could be just a combination of the user’s first and last name or a nickname.
`lang`	(Optional) The user’s preferred language.

Next Request: User Details

Your client calls the PUT /process/step API, and passes the user-supplied info to the Process.

**PUT https://\{your.url\}/process/step**
{
   "processId": "8bca30ca-dd44-4050-aece-53b0dbed1922",
   "parameters": {
      "credential": "GoodPas$word123",
      "email": "bob@example.com"
   }
}

`processId`	Unique identifier for the current instance of this Process.
`parameters`	Data object that contains the data requested in the previous Process response.
`email`	The user’s email address.
`credential`	The user’s desired password.

Process Complete

If the email and password pass validation, then the Process creates and saves a user to the data store, and returns a 200 HTTP status:

**RESPONSE - body**
{
   "processId": "8bca30ca-dd44-4050-aece-53b0dbed1922",
   "processName": "onboard.OnboardUserWithEmailMobile.v1.0",
   "output": {
      "pkat": "sdfsd-gfsdfgsd-sdgsdg-sfddsf-dsfsdf",
   },
   "lastStep": true
}

Storefront Gateway also sends an action token out to the user’s email address in the form of a clickable verification link (or OTP, depending on your organization’s notification settings). OTP Verification & Resend Verification Any Process step that sends a Storefront Gateway action token to a user also returns a corresponding PKAT to the client application. In order to enable OTP verification on the UI, the client must retain the PKAT returned by the final Process step. The PKAT, along with the user-supplied OTP, is required for the [GET /session/token?customToken=\{OTP\}&pkat=\{pkat\}](c_sessionToken) API to invoke the subsequent Activate User Process to complete the user onboarding. In cases where the user is anonymous, the PKAT is required if the application wants to provide a quick token resend option on the UI, using the [PUT /session/token?pkat=\{pkat\}](c_putSessionToken) API. This method applies to cases where the user is anonymous (i.e., they are not authenticated in Storefront Gateway). However, if the user is currently authenticated in Storefront Gateway, the client application can instead invoke the Resend Verification Process for this purpose.

`processId`	Unique identifier for the current instance of this Process.
`processName`	Full name of the Process, including the category and version number.
`lastStep`	Boolean that indicates whether or not this was the last step in the Process.
`output`	Object that contains data that the client can consume, retain, and use for additional operations.
	`pkat`	Unique Proof Key for Action Token that corresponds to an existing action token.
The end user has successfully onboarded with their email address. The User entity is stored with an `activating` status. The email address, stored on the User entity as an attribute, also has an activating status. The end user needs to verify their email address and fully Activate their User identity.
